Manned Flight nº: 108 |
Earth orbit Flight nº: 105 |
USA manned Flight nº: 50 |
Launch, orbit & landing data:
Designation | 15925 / 85063A |
Launch date - time | 29 Jul 1985 - 21:00:00 UT |
Launch site | KSC, LC39A |
Launch vehicle |
Space Shuttle |
Orbiter | Challenger OV-099 (#8) |
Primary payload | Spacelab 2 |
Mass (kg) | |
Call Sign | |
Earth orbit on : |
- Perigee / Apogee | km |
- Inclination | 49.5° |
- Period | min |
Landing date - time | 06 Aug 1985 - 19:45:26 UT |
Landing location | Edwards AFB, Runway 23 |
Flight Duration (d:hr:min) | 7d 22h 45m |
Nbr orbits | 127 |
|
|
Flight Crew
Nr. |
Surname |
Given name |
Job |
Duration |
1 |
Fullerton |
Charles Gordon |
CDR |
7d 22h 45m |
2 |
Bridges |
Roy Dunbard, Jr. |
PLT |
7d 22h 45m |
3 |
Musgrave |
Franklin Story |
MSP |
7d 22h 45m |
4 |
England |
Anthony Wayne |
MSP |
7d 22h 45m |
5 |
Henize |
Karl Gordon |
MSP |
7d 22h 45m |
6 |
Acton |
Loren Wilber |
PSP |
7d 22h 45m |
7 |
Bartoe |
John-David Francis |
PSP |
7d 22h 45m |
Mission details:
Launch from Cape Canaveral (KSC); landing on Edwards
AFB; number one main engine shutdown prematurly, resulting in an Abort To
Orbit (ATO) trajectory (planned orbit was 400 km); third flight of
Spacelab (Mission SL-2); first time of testing "Instrument Pointing
System" (IPS) in orbit, which was developed by Dornier Corporation;
deploying and retrieving of platform PDB; experiments in life sciences,
plasma physics, astronomy, high energy astrophysics, solar and atmospheric
physics and technical research; mission extended one day for additional
payload activities.
LV Configuration: STS-26 (51-F).Payload: Challenger F08 / PDP / Spacelab 2 PLT. Mass: 15,603 kg. Perigee: 203 km. Apogee: 337 km. Inclination: 49.5 deg. Period: 89.9 min.

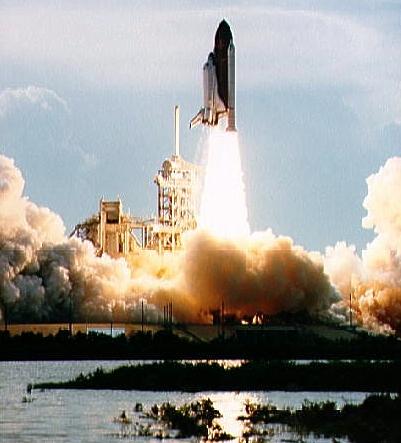

| STS-51-F - Launch of the STS 51-F Challenger - Credit: NASA. |
Manned seven crew. At 5 minutes, 45 seconds into ascent the number one engine shut down prematurely and an abort to orbit was declared. Despite the anomaly the mission continued. Launched PDP; carried Spacelab 2. Payloads: Spacelab-2 with 13 experiments, Shuttle Amateur Radio Experiment (SAREX), Protein Crystal Growth (PCG). The flight crew was divided into a red and blue team. Each team worked 12-hour shifts for 24-hour-a-day operation.
| STS-51-F - Kathleen England watches her image transmitted to shuttle - Credit: NASA. |
Orbits of Earth: 126. Distance traveled: 5,284,350 km. Orbiter Liftoff Mass: 114,590 kg. Orbiter Mass at Landing: 98,307 kg. Payload to Orbit: 15,603 kg. Payload Returned: 15,603 kg. Landed at: Runway 23 dry lake bed at Edwards Air Force Base, . Landing Speed: 368 kph. Touchdown miss distance: 1,131 m. Landing Rollout: 2,611 m.

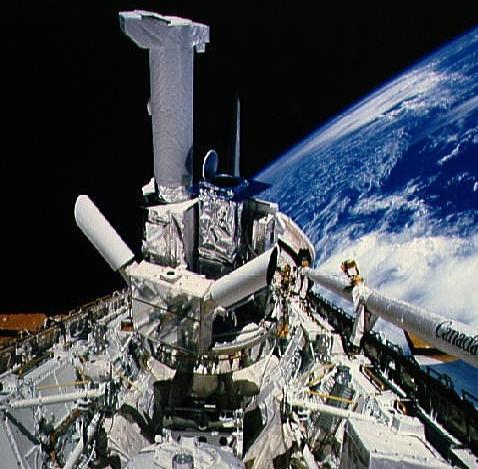

| STS-51-F - View of Spacelab 2 pallet in the open payload bay - Credit: NASA. |
NASA Official Mission NarrativeMission Name: 51-F (19)
CHALLENGER (8)
Pad 39-A (31)
19th Shuttle mission
8th Flight OV-099
RSLS Abort after SSME Ignition (2)
Abort-to orbit (1)
Extended mission
Crew:
Gordon Fullerton (2), Commander
Roy D. Bridges (1), Jr., Pilot
F. Story Musgrave (2), Mission Specialist 1
Anthony W. England (1), Mission Specialist 2
Karl G. Henize (1), Mission Specialist 3
Loren W. Acton (1), Payload Specialist 1
John-David F. Bartoe (1), Payload Specialist 2

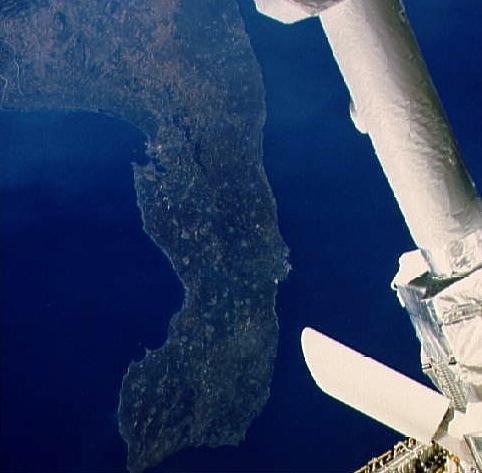

| STS-51-F - Southern Italy, Instrument Pointing Subsystem - Credit: NASA. |
Milestones:
OPF - May 12,1985
VAB - June 24, 1985
PAD - June 29, 1985 Payload:
SPACELAB-2,SAREX(1),CBDE,PGU
Mission Objectives:
The Spacelab-2 payload consisted of an igloo and three pallets in the payload bay, containing scientific instruments dedicated to life sciences, plasma physics, astronomy, high-energy astrophysics, solar physics, atmospheric physics and technology research.
A major objective of the mission was to verify the performance of the Spacelab systems with the orbiter as well as to measure the environment created by the vehicle in space.
| STS-51-F - View of the Challenger's payload bay and the SOUP experiment - Credit: NASA. |
Launch:
July 29, 1985, 5:00:00 p.m. EDT. Launch countdown July 12 halted at T-3 seconds after main engine ignition when a malfunction of number two Space Shuttle Main Engine (SSME) coolant valve caused shutdown of all three main engines. Launch July 29 delayed one hour, 37 minutes due to problem with table maintenance block update uplink. Five minutes, 45 seconds into ascent, number one main engine shutdown prematurely, resulting In an Abort To Orbit (ATO) trajectory. Launch Weight: 252,855 lbs.
Orbit:
Altitude: 173nm
Inclination: 49.5 degrees
Orbits: 127
Duration: 7 days, 22 hours, 45 minutes; 26 seconds.
Distance: 3,283,543 miles

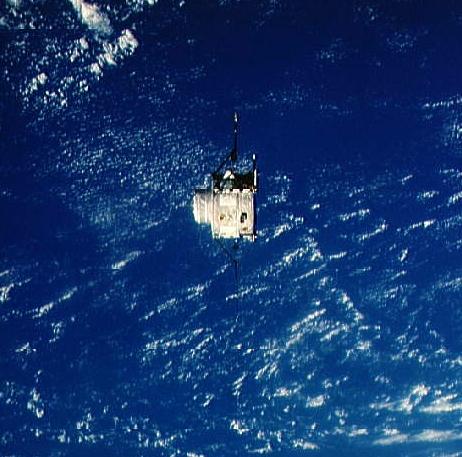

| STS-51-F - View of the Plasma Diagnostics Package (PDP) - Credit: NASA. |
Hardware:
SRB: BI-017
SRM: M019(HPM)
ET : 19/LWT-12
MLP : 2
SSME-1: SN-2023
SSME-2: SN-2020
SSME-3: SN-2021 Landing:
August 6, 1985, 12:45:26 p.m. PDT, Runway 23, Edwards Air Force Base, Calif. Rollout distance: 8,569 feet. Rollout time: 55 seconds. Mission extended 17 revolutions for additional payload activities due to abort-to-orbit. Orbiter returned to KSC Aug. 11, 1985. Landing Weight: 216,735 lbs.
| STS-51-F - Astronaut Anthony W. England with soft drink in middeck area near galley - Credit: NASA. 37,029 bytes. 312 x 312 pixels. |
Mission Highlights:
Primary payload was Spacelab-2. Despite abort-to-orbit, which required mission replanning, mission declared success. Special part of modular Spacelab system, the Igloo, located at head of three-pallet train, provided on-site support to instruments mounted on pallets. Main mission objective was to verify performance of Spacelab system sand determine interface capability of orbiter, and measure environment induced by spacecraft. Experiments covered life sciences, plasma physics, astronomy, high energy astrophysics, solar physics, atmospheric physics and technology research.
The flight marked the first time the ESA Instrument Pointing System (IPS) was tested in orbit. This unique experiment pointing enstrument was designed with an accuracy of one arc second. Initially, some problems were experienced when it was commanded to track the Sun. A series of software fixes were made and the problem was corrected.
STS-51F Challenger landing at Edwards Air Force Base in
southern California - Credit: NASA. |
Landing of the Shuttle Challenger at Edwards AFB |
Ref.: #1, #7, #8, #16 - update: 12.03.17
|
