Tsiolkovsky, Konstantin Eduardovich |
Russian |
For a long time I thought of the rocket as everybody else did – just as a means of diversion and of petty everyday uses. I do not remember exactly what prompted me to make calculations of its motions. Probably the first seeds of the idea were sown by that great fantastic author Jules Verne – he directed my thought along certain channels, then came a desire, and after that, the work of the mind.

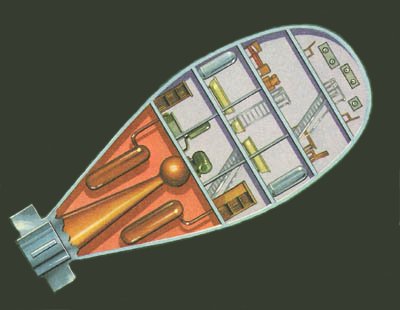

Visualize ... an elongated metal chamber ... designed to protect not only the various physical instruments but also a human pilot... The chamber is partly occupied by a large store of substances which, on being mixed, immediately form an explosive mass. This mixture, on exploding in a controlled and fairly uniform manner at a chosen point, flows in the form of hot gases through tubes with flared ends, shaped like a cornucopia or a trumpet. These tubes are arranged lengthwise along the walls of the chamber. At the narrow end of the tube the explosives are mixed: this is where the dense, burning gases are obtained. After undergoing intensive rarefaction and cooling, the gases explode outward into space at a tremendous relative velocity at the other, flared end of the tube. Clearly, under definite conditions, such a projectile will ascend like a rocket...One of the propellant combinations that Tsiolkovsky favored, used commonly today in launch vehicles, was liquid hydrogen and liquid oxygen because it produces a particularly high exhaust velocity. This factor, the rocket equation reveals, helps determine the maximum speed that a spacecraft of given mass can reach. There was the problem of converting hydrogen, especially, into liquid; yet, to begin with, Tsiolkovsky brushed this aside. He did note, however, that: “The hydrogen may be replaced by a liquid or condensed hydrocarbon; for example, acetylene or petroleum.”
If a single-stage rocket is to attain cosmic velocity it must carry an immense store of fuel. Thus, to reach the first cosmic velocity [his term for the speed needed to enter Earth orbit], 8 km/s, the weight of fuel must exceed that of the whole rocket (payload included) by at least four times... The stage principle, on the other hand, enables us either to obtain high cosmic velocities, or to employ comparatively small amounts of propellant components.The concept of the multistage rocket had been known to firework-makers for at least two centuries. But Tsiolkovsky was the first to analyze it in depth, and he concluded that it was the only feasible way of enabling a spacecraft to escape from the Earth’s gravity.
|
